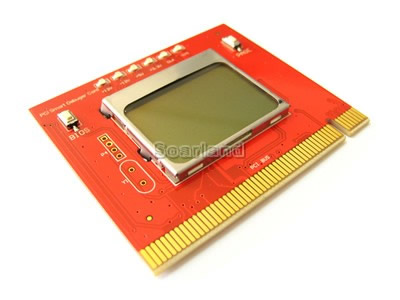

LCD PCI Motherboard Diagnostic Debug Card

Model :
SLDC008
Name:
LCD PCI Motherboard Diagnostic Debug Card

Description
The SLDC008 LCD PCI POST Diagnostic Card use database compress technologies, so we can store all debug error information to MCU. The MCU can analysis debug code and show error information, thus you can repair your motherboard (main-board) quickly. It displays the error message on the LCD.
.

Specification & Feature
  • PCI 32-Bit Slot - desktop computer.
  • Compatible with ATX, BTX, ITX
  • LCD display - show detail error message, need not find the meaning of the code like old diagnostic card.
  • 6 LEDs that can indicate the power supply.
  • BIOS KEY & PAGE KEY can change BIOS and show previous code.
  • show the error message of CPU, Memory, display card and so on
  • Reduce troubleshooting time.
  • Fit for both Novices and Experienced users
  • Dimentions: 74mm x 63mm
  • Net Weight: 25g
  • OEM info: We can provide special version in Simplified Chinese, Traditional Chinese, Japanese, Korea, German, French, Russian, etc.

User Manual
pdf

Other Picture

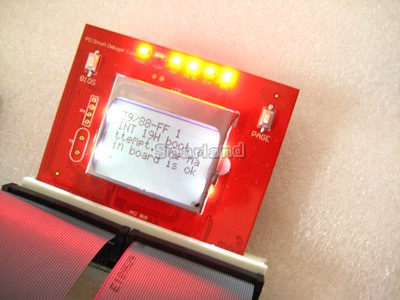

LCD POST DEBUG diagnostic card



See other similar product of this category :

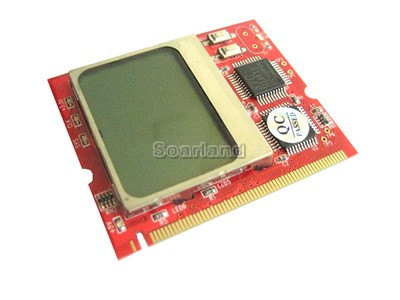

LCD MINIPCI Motherboard Diagnostic Debug Card (SLDC012)

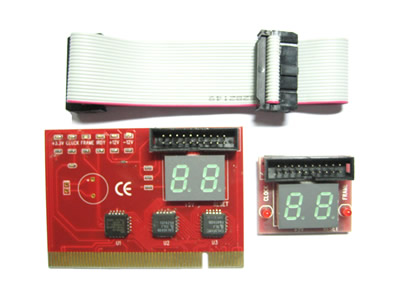

2-Digit External Display PCI Motherboard Diagnostic Debug Card (SLDC004)
2-Digit PCI Motherboard Diagnostic Debug Card (SLDC003)
4-Digit MINIPCI / LPT Motherboard Diagnostic Debug Card (SLDC011)

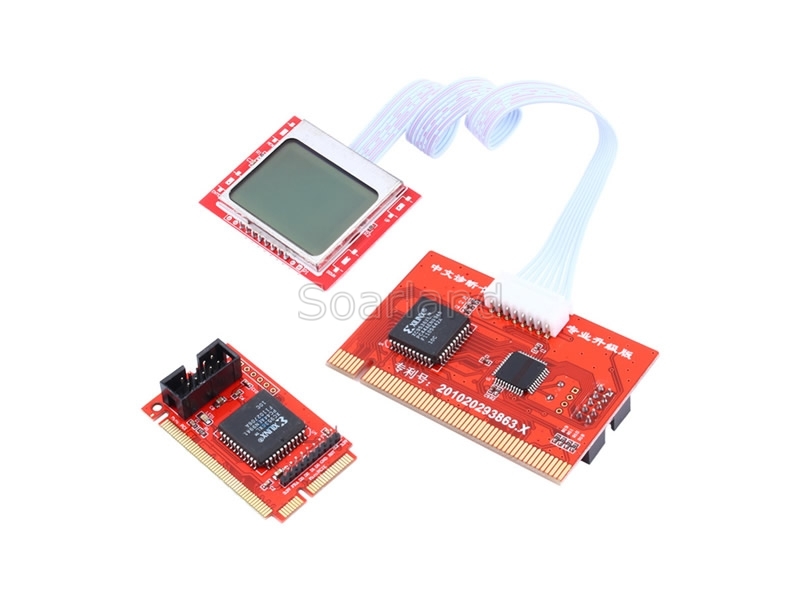

LCD Diagnostic Card for Laptop and Desktop (SLDC014)
