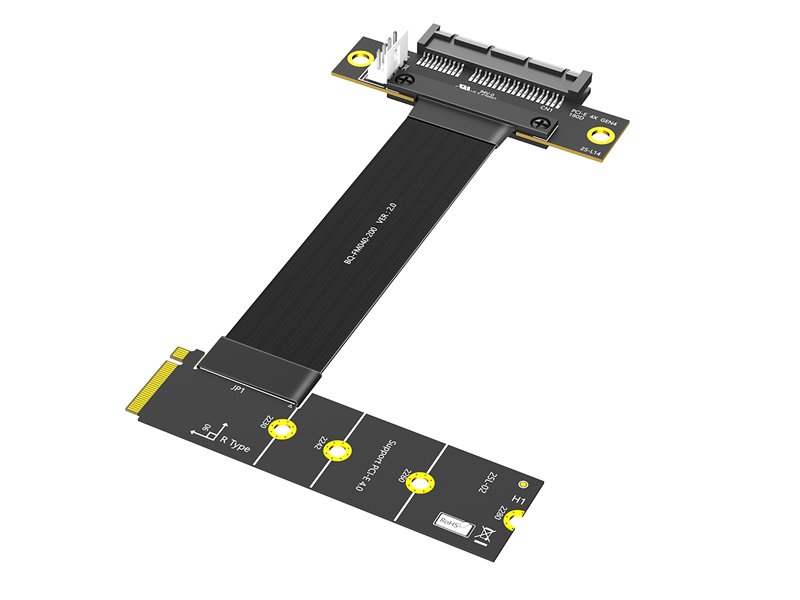

• PCIe x16 to M.2 KEY-M Cable Adapter
Product Model:

SLNX3043

Product Name:

PCIe x16 to M.2 KEY-M Cable Adapter


Description

The SLNX3043 PCIe x16 to M.2 KEY-M Cable Adapter makes PCIe x1,x4,x8,x16 card away from motherboard using the M.2 KEY-M connector, it is flexible cable design and suitable for your own projects. it will offer more power supply from power connector.


Specification & Feature
  • Cable Length: 20cm (default), Customized for 10~100cm (010~100)
  • Wire advantage, using German patented imported wire, using Taiwan imported High quality connector, high frequency support PCIe 3.0 stable transfer
  • Header (Male) Connector: NGFF M.2 KEY-M.
  • Receptacle (Female) Connector: PCIe x16.
  • Supports 2230/2242/2260/2280 type M.2 interface.
  • PCIe x4 Slot edge is free, supports PCIe x1/x4/x8/x16 card
  • Cable Quality: Stable PCIe Gen3 8Gbps or higher with high quality Axial Cable
  • Cable Flexibility: Highly-routable, foldable, flexible
  • PCB Quality: Experienced design and durable material for High frequency and low attenuation.
  • Solder Point Protection: PCB-Swaddled and fixed with Bolts and nut to prevent tearing and short circuit for PCB-Cable solder points.
  • No drivers required for this converter
  • Supports Windows 7/8/10, IOS or Linux

PCIe x4 to M.2 KEY-M Cable Adapter

PCIe x4 to M.2 KEY-M Cable Adapter

PCIe x4 to M.2 KEY-M Cable Adapter

PCIe x4 to M.2 KEY-M Cable Adapter
