USB Type M.2 to mini PCIe Adapter

Model :
SLNX1031B
Name:
USB Type M.2 to mini PCIe Adapter

Description
M.2 stands for Next Generation Form Factor which is invented for PCI-SIG by Intel and it is developed for flat and high-efficiency equipment such as Ultrabook or Tablet PCs. It is a natural transition from the Mini Card and Half Mini Card to a smaller form factor in both size and volume which supports multiple function add-in cards/modules including: Wi-Fi, Bluetooth, global navigation satellite systems, near field communication, Hybrid digital radio, wireless gigabit alliance (WiGig), wireless wide area network and solid-state storage devices. Also adds functionality to USB 3.0, display Port, SDIO and SSD-PCIe
The SLNX1031 USB Type M.2 to mini PCIe adapter is designed for desktop/Laptop PCs that convert 3G wireless M.2 Card to full/half mini card slot.
You can insert your M.2 card (Socket 2 SSIC-base WWAN) such as GSM, HSPA(3.5G), GPS, LTE cards to this adapter then plug to USB port through USB cable.

Specification & Feature
  • Allows user to use M.2 Socket SSIC-based WWAN Module to mini PCIe Slot in the Desktop or Laptop.
  • Supports USB interface of M.2 Cards (Socket 2 SSIC-base WWAN) such as 2G GSM, GPRS, 3G,CDMA, WLAN,WWLAN, HSPA MODEM , GPS, 4G WiMAX, LTE, Mini Card to desktop PC.
  • Support Full size and half size mPCIe slot
  • M.2 Specification Revision 0.9
  • Universal Serial Bus Specification Revision 2.0
  • Support 3042 / 3030 / 2230 / 2242 M.2 Card dimension
  • Support M.2 Socket SSIC-based WWAN Module.
  • Support M.2 Key B Card Type.
  • Mini PCI-E slot
  • Support Windows 2000, XP, Vista 32/64, Windows 7, Windows 8 or Linux
  • Dimension:55 x 31mm
  • Weight:10g

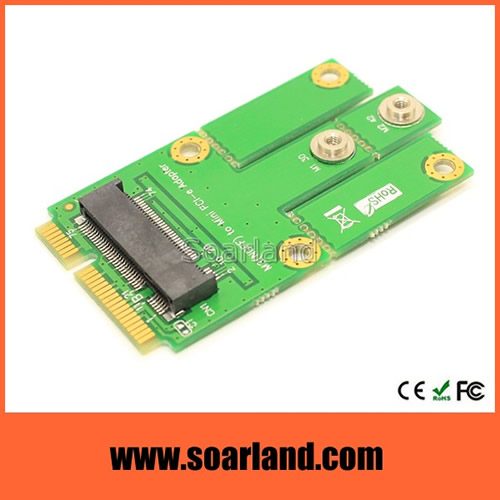

USB type M.2 to mini PCIe Adapter

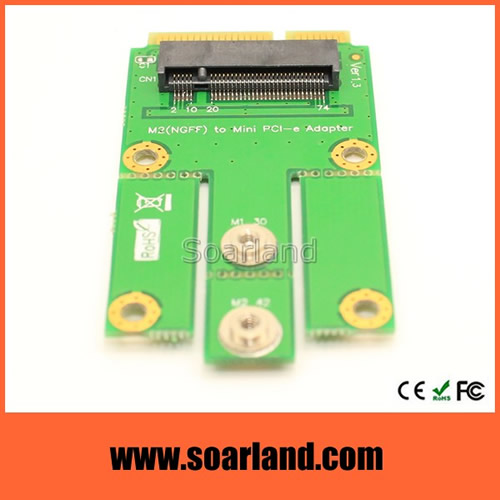

USB type M.2 to mini PCIe Adapter

USB type M.2 to mini PCIe Adapter
