mini PCIe 2 Serial 1 Parallel Combo Card

Model :
mini PCIe 2 Serial 1 Parallel Combo Card


The SLMA3020 Mini PCIe 2 Serial 1 Parallel Card uses the PCIe interface standard for expansion bus, enabling this card to be installed on any embedded or micro system with Mini PCIe expansion capability. Most of the latest motherboards no longer come with legacy serial port. By using this card, end user can add serial and parallel ports to the computer for connecting their I/O devices. The card offers superior performance and unmatched data transfer rates. It is also ideal for industrial automation applications

Specification & Feature
  • Fully compliant with PCI-Express Base Specification Revision 1.1
  • Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
  • Compatible with PCI-E Mini Card Electromechanical specification revision 1.2
  • Compatible with Full-Mini (F1) card type form factor
  • Serial Port (RS-232) Interface
    • Compatible with industrial standard 16C450/16C550 UART
    • On chip 256-byte depth FIFO in transmit, receive path of each port
    • Maximum data rate 230.4Kbps on each port (Special version can support up to 1Mbps)
    • Available jumpers setting for pin-9 on the DB9 connectors with the options of 5V, 12V or RI signal
    • Supports hardware and software flow control
    • Supports 5-, 6-, 7-, 8- bit serial format
    • Supports Even, Odd, None, Space & Mark parity
    • Supports 1 or 2 Stop bit operation
  • Parallel Port (IEEE 1284) Interface
    • IEEE 1284 compatible parallel port
    • Supports SPP, PS2, EPP and ECP mode operation
    • Fast data rates up to 1.5Mbps
  • Supports Windows 7 / Vista / XP / Server 2003-2008 32/64-bit, 2000, Linux, Mac OS/X 10.5, and DOS 6.22

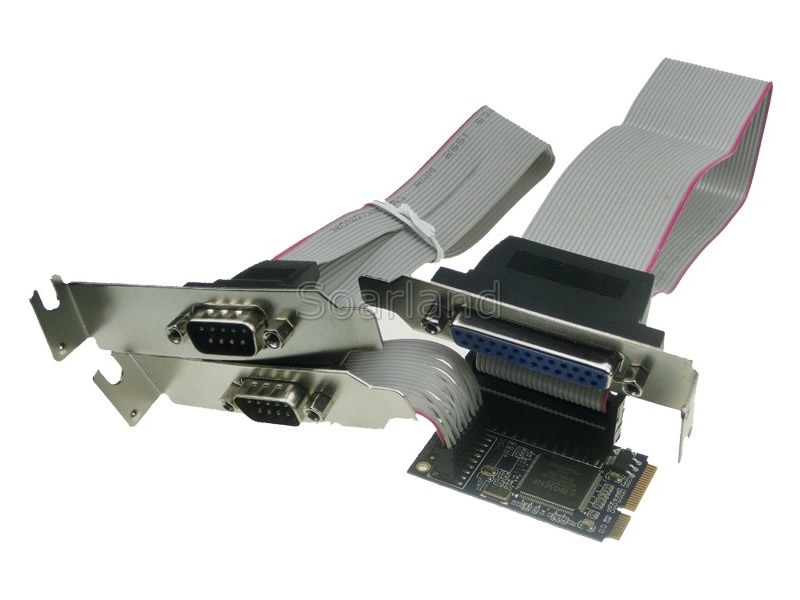

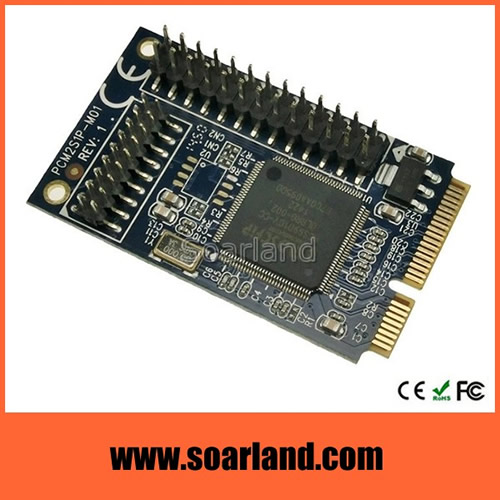

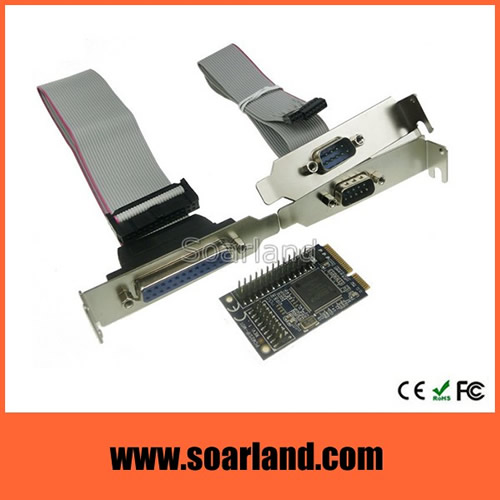

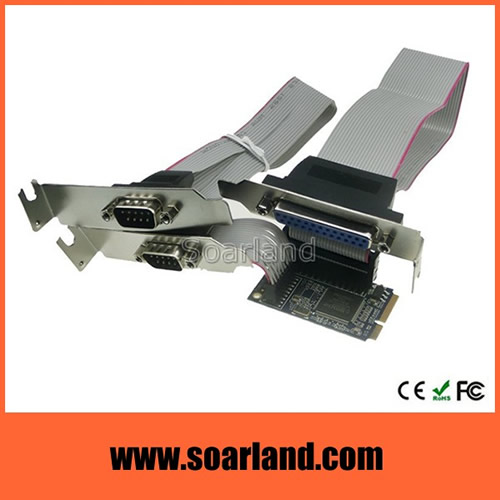

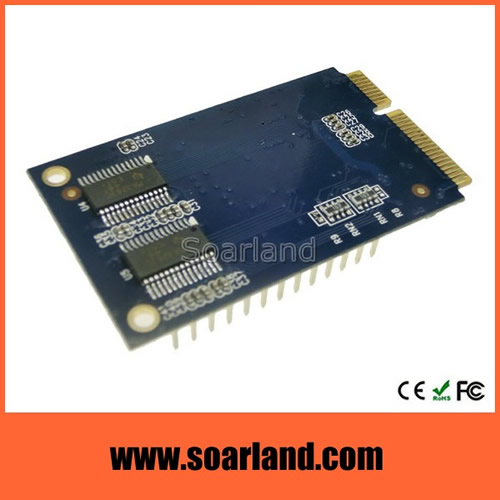

mini PCIe 2 Serial 1 Parallel Card

mini PCIe 2 Serial 1 Parallel Card

mini PCIe 2 Serial 1 Parallel Card

mini PCIe 2 Serial 1 Parallel Card

mini PCIe 2 Serial 1 Parallel Card
