mini PCIe to USB 3.1 Type-C Adapter

Model :
SLMA1031
Name:
mini PCIe to USB 3.1 Type-C Adapter

Specification & Feature
•  Mini PCI Express Base Specification
•  Compliant with Universal Serial Bus 3.1 specification Gen2
•  Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1
•  Compliant with USB Attached SCSI Protocol Revision 1.0
•  Supports simultaneous operation of multiple USB 3.1, 3.0, USB 2.0 and USB 1.1 devices
•  Supports USB data transfer rate of 10G/5G/480/12/1.5 Mbps
•  Built-in over current protection on USB port
•  USB port supplies maximum +5VDC / 3A power output to USB device
•  Support device remote wakeup function from USB keyboard or mouse
•  Hot-swapping feature allows connect/disconnect device without powering down the system
•  Power Input: 2-pin Cable Type Power Connector
•  Support Control, Bulk, Stream, Interrupt, Isochronous transfer type
•  Operation Temperature :0 to 60°C (32 to 140°F)
•  Storage Temperature:-20 to 70°C (-4 to 158°F)
•  Operation Humidity:5 to 95% RH

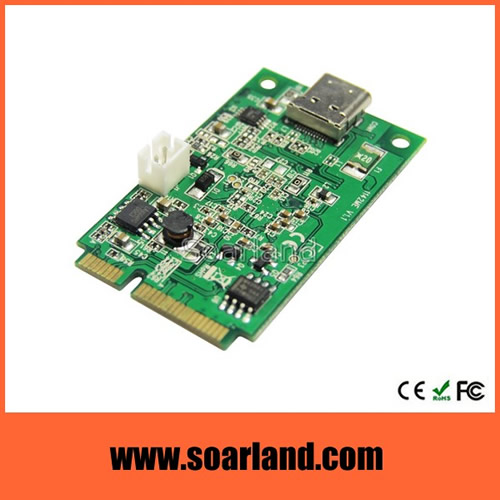

mini PCIe to USB 3.1 type C

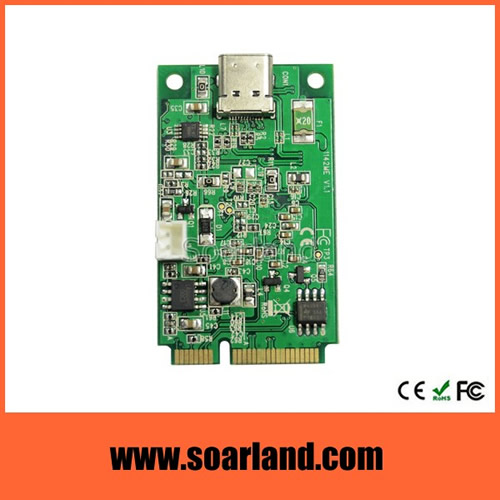

mini PCIe to USB 3.1 type C

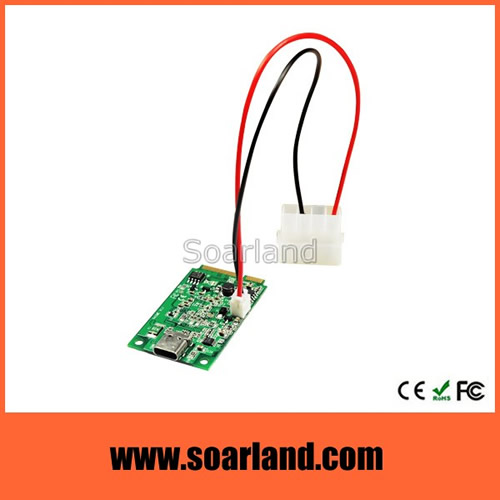

mini PCIe to USB 3.1 type C

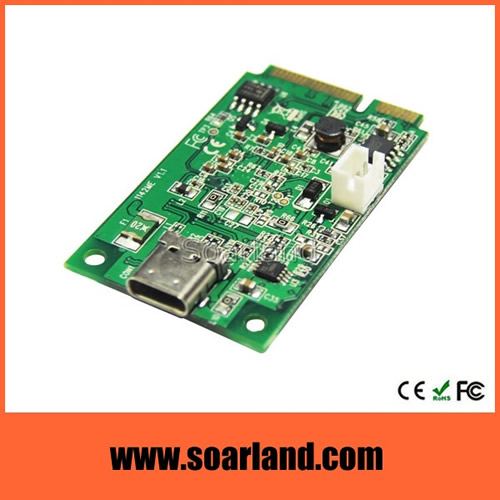

mini PCIe to USB 3.1 type C
