• mini PCIe Serial Port Card
Product Model:

SLMA3010

Product Name:

mini PCIe Serial Port Card


Description

The SLMA3010 Mini PCIe 2 Serial Ports card uses the PCIe interface standard for expansion bus, enabling this card to be installed on any embedded or micro system with Mini PCIe expansion capability. Most of the latest motherboards no longer come with legacy serial port. By using this card, end user can add serial to the computer for connecting their I/O devices. The card offers superior performance and unmatched data transfer rates. It is also ideal for industrial automation applications


Specification & Feature
  • Fully compliant with PCI-Express Base Specification Revision 1.1
  • Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
  • Compatible with PCI-E Mini Card Electromechanical specification revision 1.2
  • Compatible with Full-Mini (F1) card type form factor
  • Compatible with industrial standard 16C450/16C550 UART
  • On chip 256-byte depth FIFO in transmit, receive path of each port
  • Maximum data rate 230.4Kbps on each port (Special version can support up to 1Mbps)
  • Available jumpers setting for pin-9 on the DB9 connectors with the options of 5V, 12V or RI signal
  • Supports hardware and software flow control
  • Supports 5-, 6-, 7-, 8- bit serial format
  • Supports Even, Odd, None, Space & Mark parity
  • Supports 1 or 2 Stop bit operation

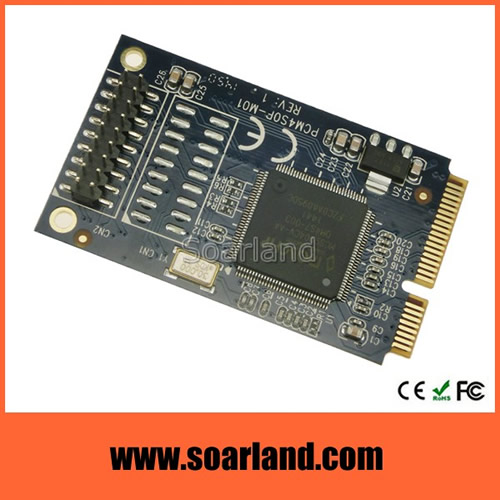

mini PCIe Serial Card

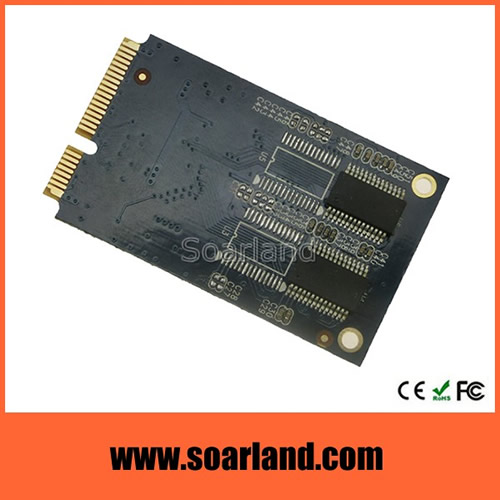

mini PCIe Serial Card

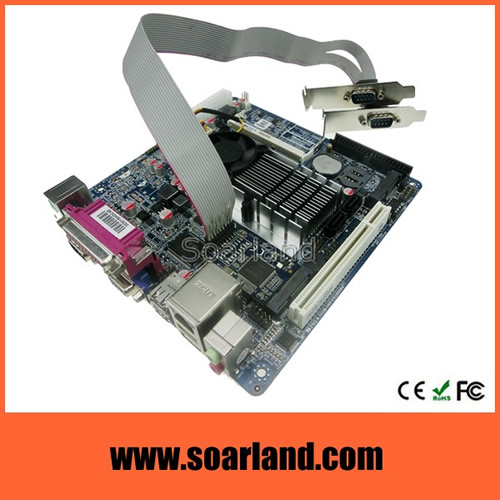

mini PCIe Serial Card

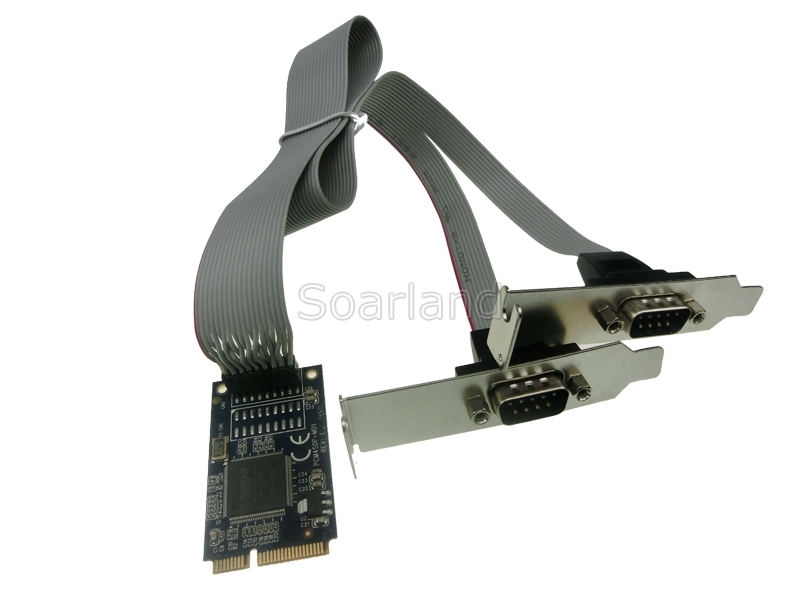

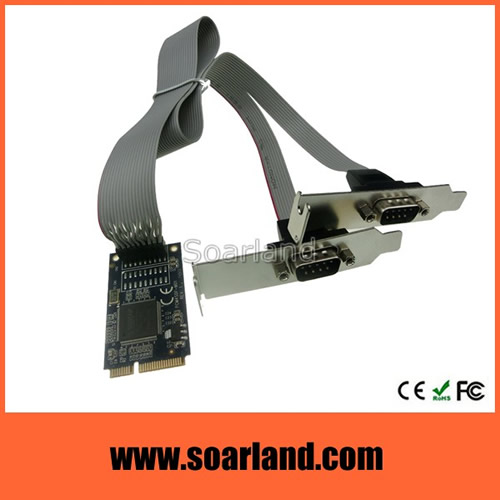

mini PCIe Serial Card
