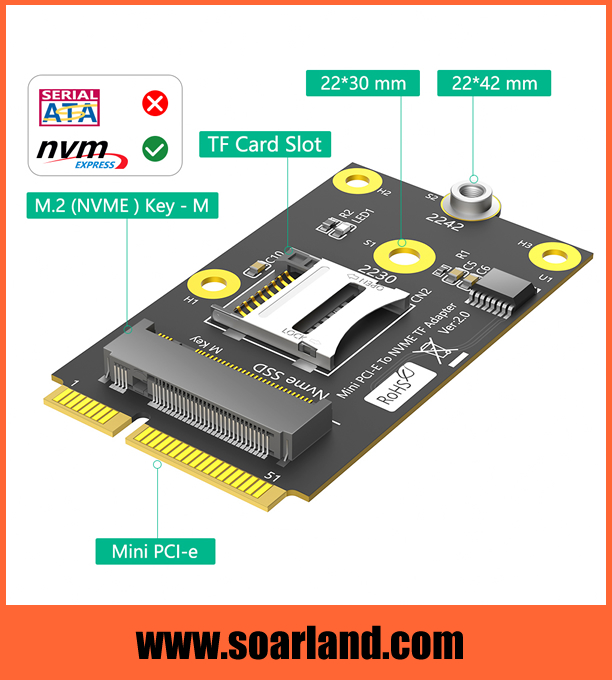

- 1.Supports only M.2 Key M 2230 NVMe SSD, SATA-bus M.2 SSD is not supported.
- 2.TF Card Compatibility: MICRO SD/SDXC/TF card, support 480Mbps data rate max.
- 3.Only suitable for the full-size Mini PCI-E, and is not suitable for MSATA, the Mini PCI-E interface must support both PCI-E and USB signal, The TF card outputs is from the USB signal; the SSD is outputs from the PCI-E signal

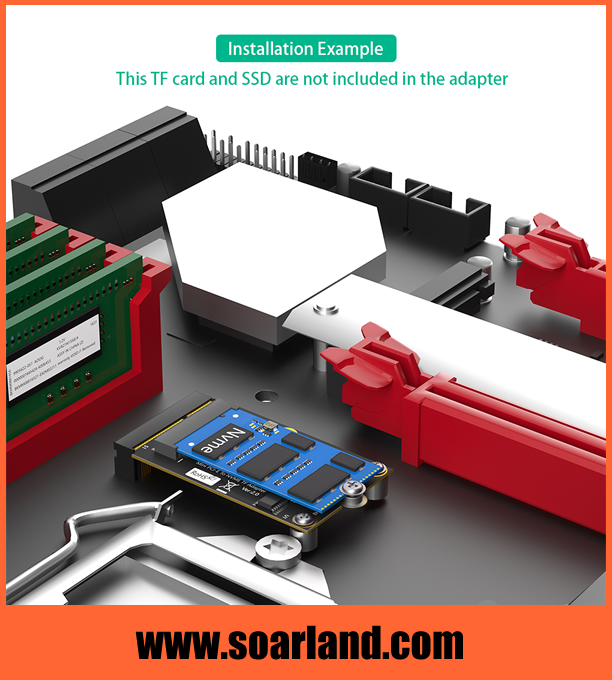

- 4.Suitable for NAS, The TF and SSD can work at same time; you can install the NAS system on a TF card; and then store data on the SSD. the riser card only changes the interface form of the Mini PCI-E module and does not change any performance of the module
- 5.No additional power required.
- 6.Motherboard requirement: Mini PCI-E full-size slot(not MSATA).
- 7.Compatible with Windows 8 / 10 / 11 systems.
|
